Train a robot - switch

Train robot to switch a lever

Setup

To train robot with a different behaviour, change values of following coefficients in config file. Values have to be between 0 - 1.

#Coefficients
"coefficient_kw"        : 0.1,
"coefficient_kd"        : 0.1,
"coefficient_ka"        : 1,

Reward is splitted into 3 parts, each part is multiplied by specific coefficient and at the end of episode summed up.

Coefficient_kw - is multiplied by distance between position of robot’s gripper and line - (initial position of robot, final position of robot)

Coefficient_kd - is multiplied by distance between task_object and robot’s gripper

Coefficient_ka - is multiplied by angle of switch

Training

  • To train model with default coefficients settings run following command

python train.py --config ./configs/train_switch.json

The training will start with gui window and standstill visualization. New directory is created in the logdir, where tranining checkpoints, final model and other relevant data are stored.

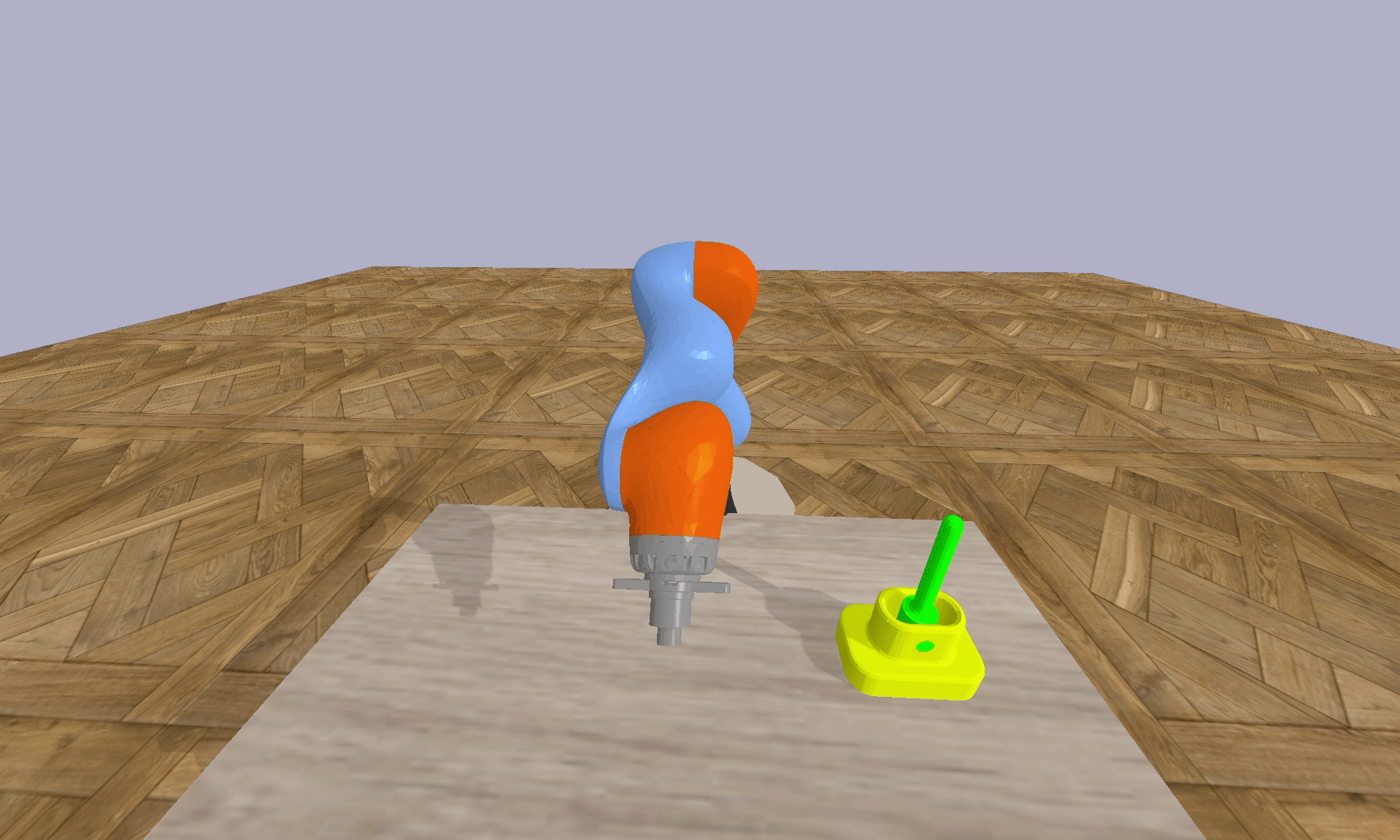

Wait until the first evaluation after 50000 steps to check the progress:

training

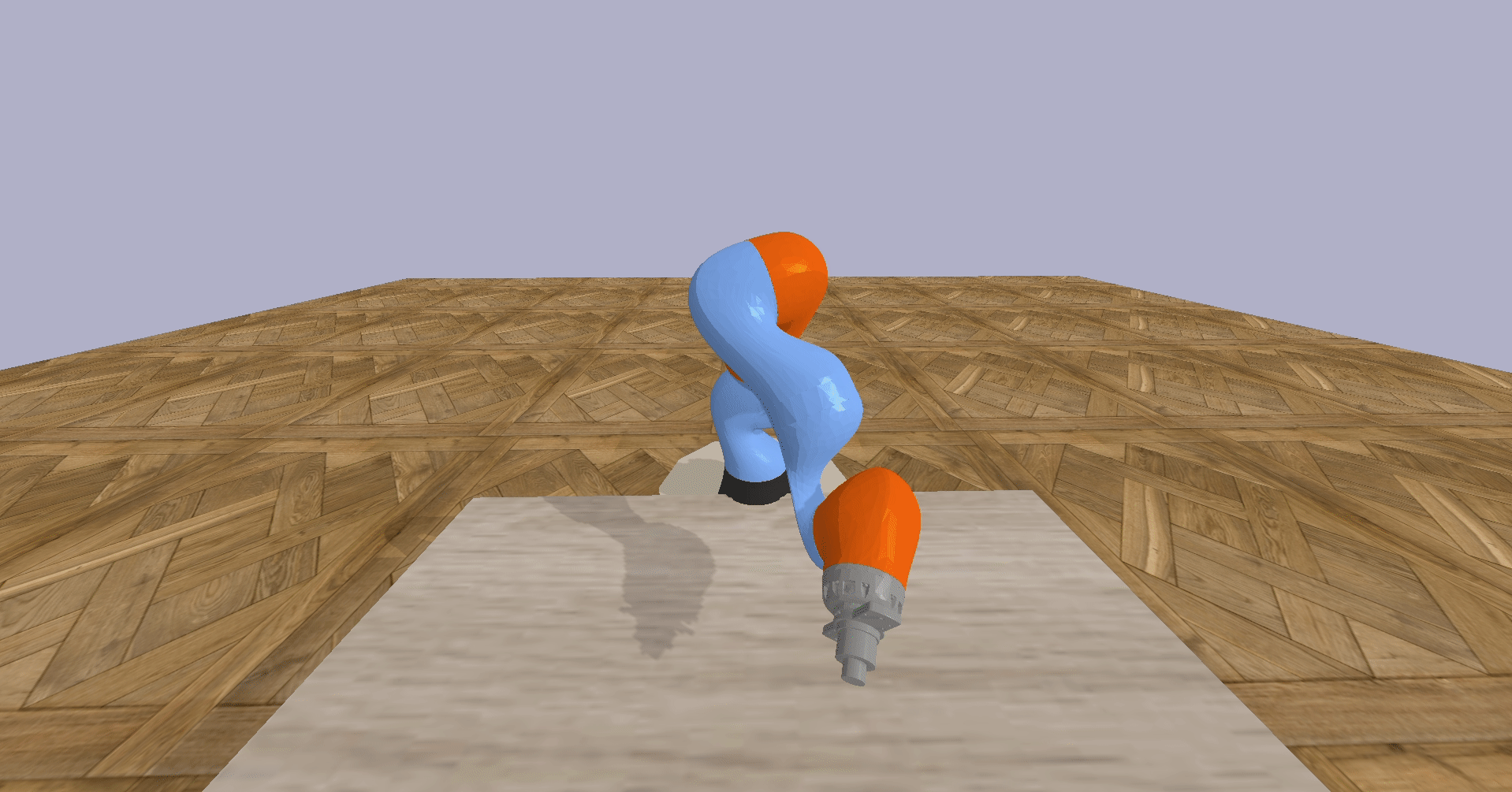

After 250000 steps the arm is able to switch the lever with 80% accuracy:

training
